Configure Bumblebee to publish test results from Jenkins to HP ALM / OpenText ALM.

Jenkins and ALM Integration

Teams use Jenkins to implement CI pipelines. These pipelines typically contain stages for running unit or integration tests using a variety of testing frameworks or tools like JUnit with Selenium, Python with Playwright, etc. The Bumblebee Plugin for Jenkins enables users to easily configure these pipeline stages to send test results to ALM via the Bumblebee server. The Bumblebee Jenkins plugin is able to parse a variety of reporting formats, extract useful data, and map them to appropriate fields in ALM without any changes to the test code.

Installation

Install the Bumblebee Jenkins plugin from the Jenkins update center.

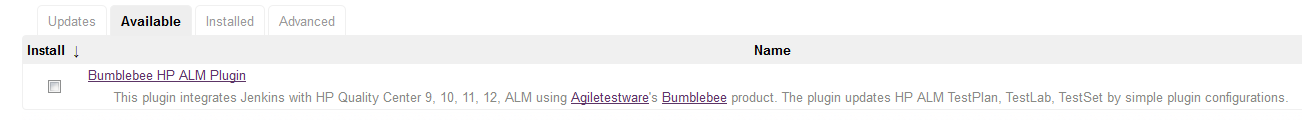

Jenkins update center

Configure the Bumblebee Jenkins plugin: Manage Jenkins → Configure System → Bumblebee Plugin

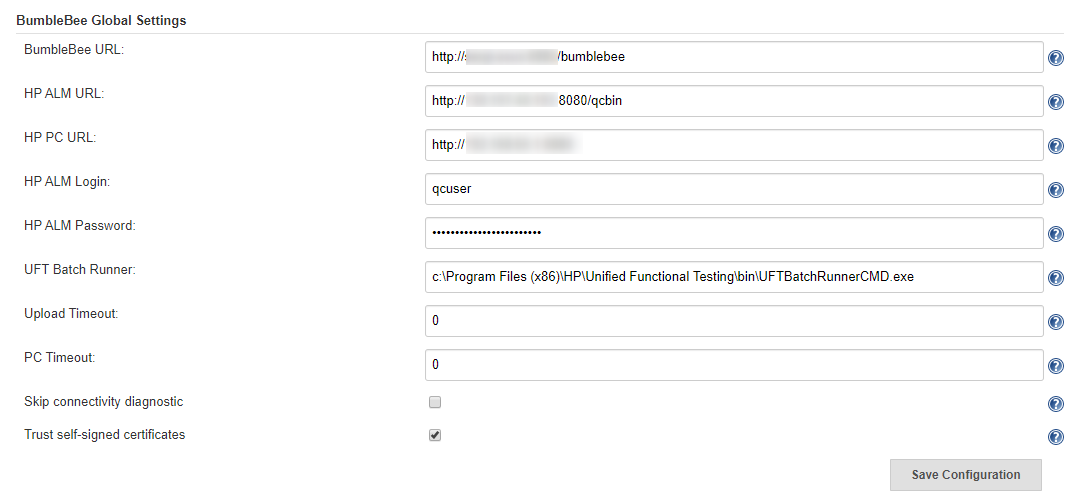

Bumblebee plugin configuration

The Bumblebee Jenkins plugin exposes a variety of options within the Jenkins Job to enable a variety of interactions with ALM.

Test Results Processor

Bumblebee is able to process a variety of test framework reporting schemas such as JUnit, TestNG, NUnit, Cucumber, Robot, and seamlessly upload them to ALM. Add the Bumblebee ALM Uploader post-build action and configure the step per your ALM integration needs.

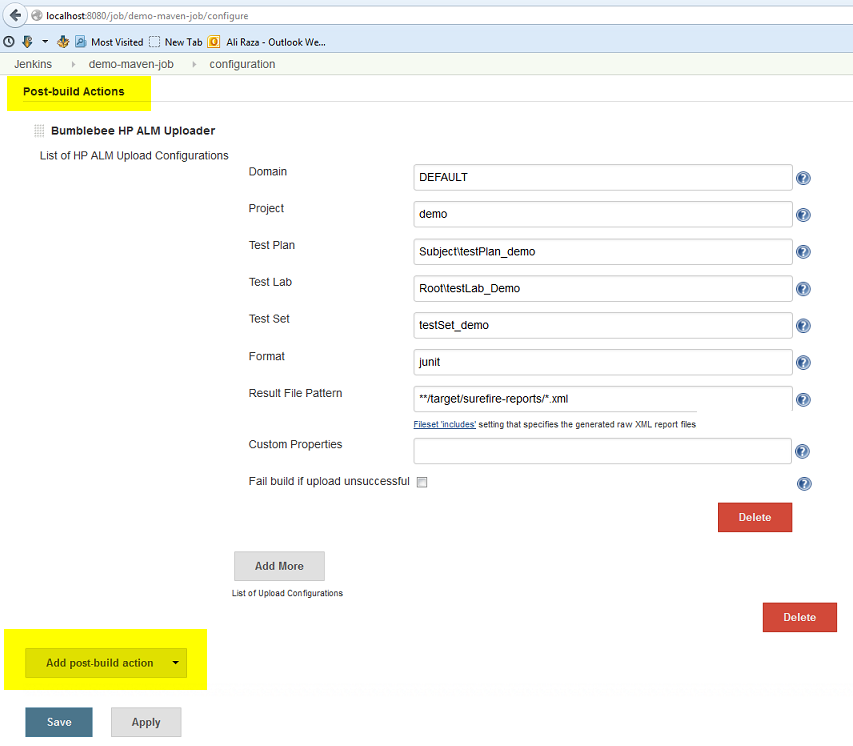

Bumblebee ALM Uploader post-build action

Jenkins Pipeline

step([$class: 'BumblebeePublisher',
   configs:[[
       domain: 'DEFAULT',
       projectName: 'demo',
       testPlan: 'Subject\\testPlan',
       testLab: 'Root\\testLab',
       testSet : 'testSet',
       format: 'JUNIT',
       resultPattern:'**/surefire-reports/*.xml',
       customProperties:'key=value',
       failIfUploadFailed: false,
       offline: false]],
   ])

ALM custom fields configured on the Bumblebee Server XML mappings can be specified in the custom properties field as name-value pairs.

Custom properties

Bumblebee ALM Uploader Field Reference

Field Name	Required	Description
Domain	Yes	The name of ALM domain where to export test results
Project	Yes	The name of ALM project
Test Plan	Yes	TestPlan path in ALM where tests should be saved. Must start with `Subject\`
Test Lab	Yes	TestLab path in ALM where test results should be saved. Must start with `Root\`
Test Set	Yes	The name of test set in ALM
Format	Yes	Format of test results. Available values: `junit`, `nunit`, `testng`, `cucumber`, `serenity`, `jbehave`
Results File Pattern	Yes	Path to the XML file(s) generated during the build. Supports comma-separated list and Ant-style patterns such as `*/surefire-reports/.xml`
HP ALM Mappings	No	Values for ALM mappings configured on the Bumblebee server. Format: `[alm field label 1]=[value 1]`, `[alm field label 2]=[value 2]`. Supports Jenkins environment variables.
Fail build if upload unsuccessful	No	If checked, marks the build as failed if the plugin cannot upload results (due to Bumblebee, ALM, or network issues).
Process offline	No	If checked, Bumblebee sends test reports to be processed in a background thread. Useful when Bumblebee's real-time processing significantly increases build time.

When the Jenkins job runs, the build log will show information about Bumblebee server activity. The test results will be processed and the corresponding TestPlan, TestLab, TestSet, and TestRun will be created automatically in ALM.

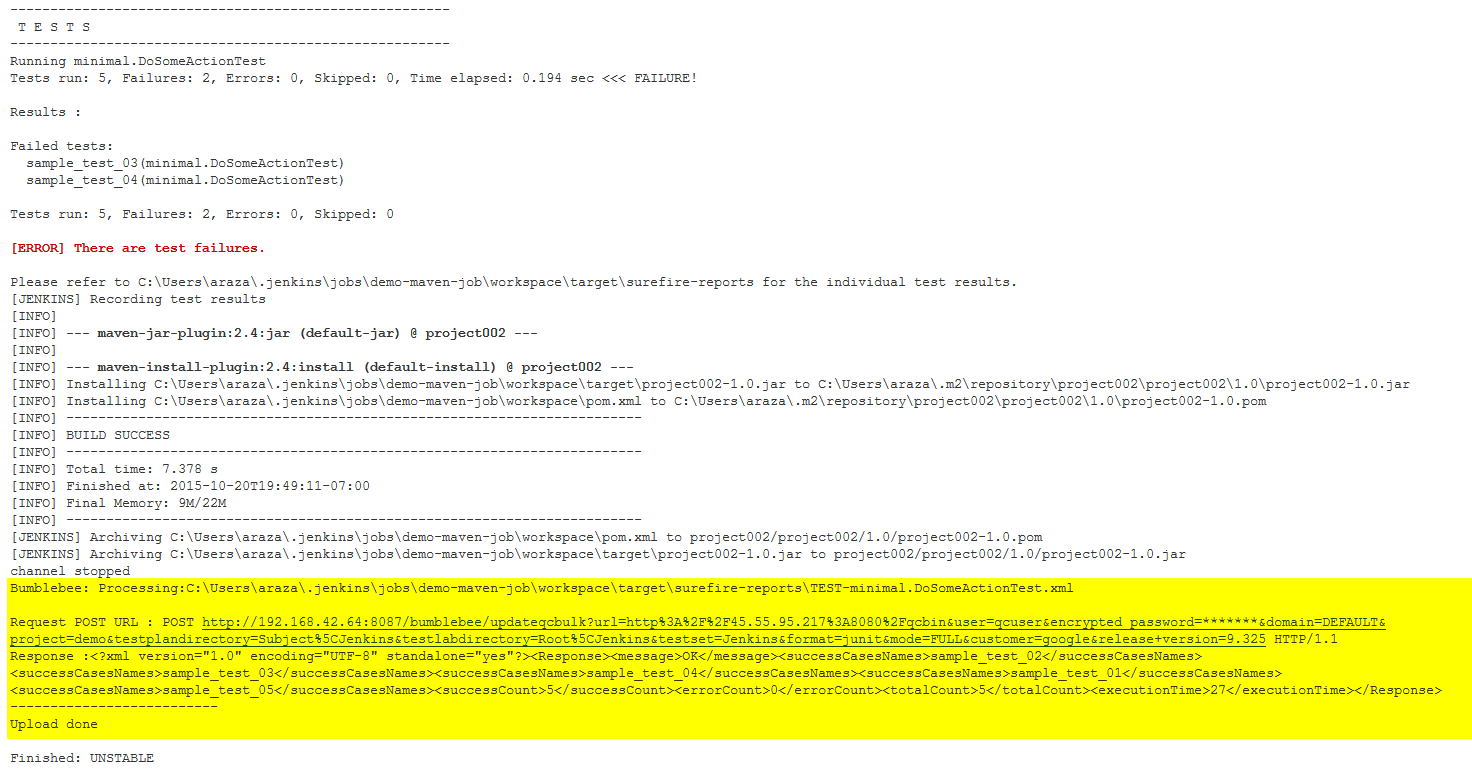

Jenkins build log

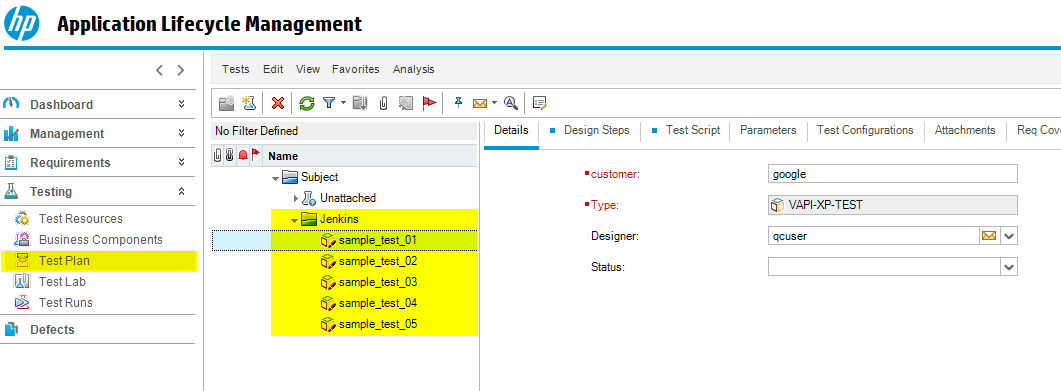

ALM TestPlan result

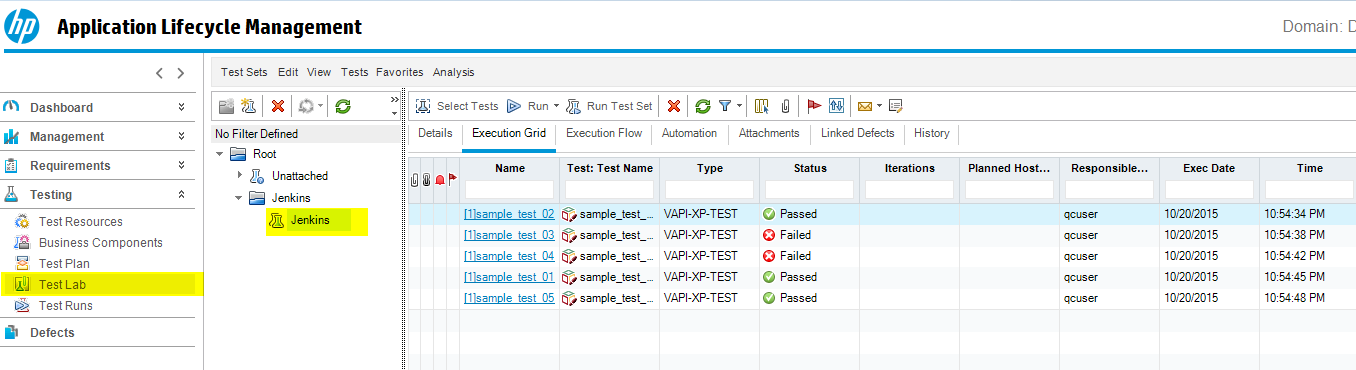

ALM TestLab result

Defect Management

Triaging Jenkins build failures and viewing test result reports in Jenkins can be time-consuming. If not done promptly, defects may not be reported on time. The Bumblebee Jenkins plugin allows users to automatically create and resolve defects in ALM using configurable rules and policies.

Add the HP ALM Uploader post-build action and configure the Defect Management section per your defect management workflow.

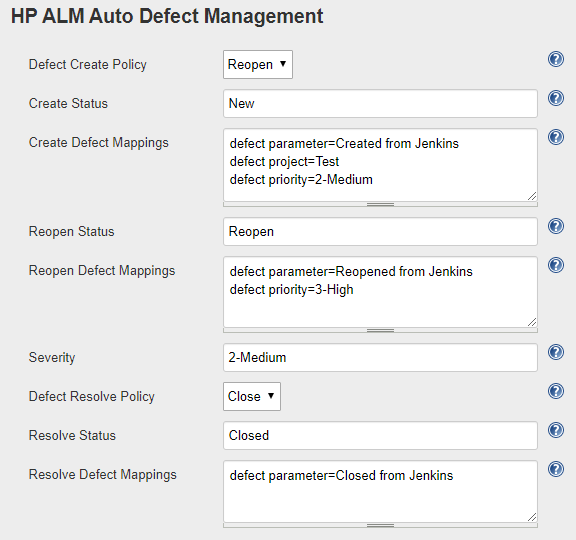

Defect management configuration

Bumblebee Defect Management Configuration

Field Name	Description
Defect Create Policy	Create: Creates a new defect for failing tests or updates existing ones with status New, Open, or Reopen. Reopen: Creates a new defect or reopens an existing one.
Create Status	Status in ALM assigned to a newly created defect.
Create Defect Mappings	Properties set on a newly created defect. Format: `[alm field label]=[value]` (one per line).
Reopen Status	Status assigned to a reopened defect. Effective only if create policy is `Reopen`.
Reopen Defect Mappings	Properties set on a reopened defect. Format: `[alm field label]=[value]` (one per line).
Severity	Value for the `Severity` property of the defect.
Defect Resolve Policy	If set to `Close`, Bumblebee searches for existing defects with a `Bumblebee` prefix for passing tests and resolves them.
Resolve Status	Status assigned to a resolved defect.
Resolve Defect Mappings	Properties set on a resolved defect. Format: `[alm field label]=[value]` (one per line).

Jenkins Pipeline

step([$class: 'BumblebeePublisher',
   configs:[[
       domain: 'DEFAULT',
       projectName: 'demo',
       testPlan: 'Subject\\defcts',
       testLab: 'Root\\defects',
       testSet : 'defects',
       format: 'cucumber',
       resultPattern:'target/*.json',
       defectCreatePolicy: 'REOPEN',
       defectCreateStatus: 'Open',
       defectSeverity: "1-Low",
       defectReopenStatus: "Open",
       defectResolvePolicy: "CLOSE",
       defectResolveStatus: "Closed",
       defectCreateProperties: "defect parameter=Created from Jenkins\ndefect project=Test\ndefect priority=2-Medium",
       defectReopenProperties: "defect parameter=Reopened from Jenkins",
       defectResolveProperties: "defect parameter=Closed from Jenkins",
       failIfUploadFailed: false,
       offline: false]],
   ])
